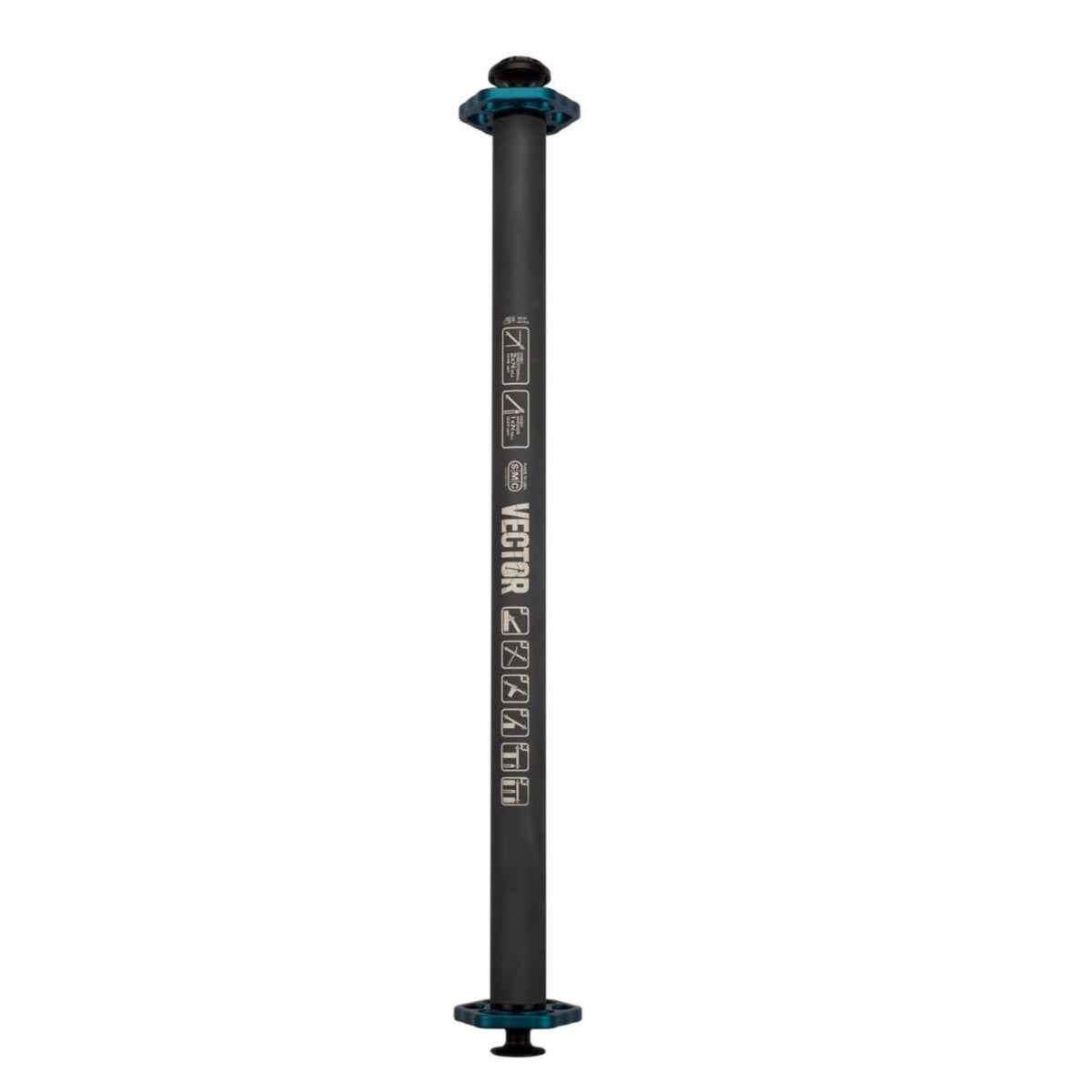

SMC Vector Edge and Load Management System monopod with rigging instructions printed on its tube, designed for edge transitions in rescue operations.

SMC Vector AHD - Edge & Load Management System

SKU 290010
Sold out
€737.00 - €737.00
€737.00
€737.00 - €737.00
€737.00

Available to Order

This product is typically stocked in the manufacturers warehouse. Estimated Lead Time is 5-10 working days.

SMC

The Vector -  Edge and Load Management System has been designed and engineered as a light-weight, portable artificial high directional (AHD) monopod system for use in industrial, mountain and urban rescue environments. Weighing just 3.04 lbs (1.38 kg), it offers a practical solution for challenging edge transitions, enhancing safety and efficiency in various rescue scenarios. When combined with high strength - low stretch cord, quality life-safety rope, lightweight pulleys and carabiners, the Vector provides rescuers with a versatile resource which can reduce risk and go virtually anywhere.

View or Download

For Professional Teams in:

  • Rope Access
Features

• Portability: Its lightweight design makes it easier to transport and set up, especially in remote or difficult-to-access locations.
• Simplicity: The monopod design allows for quicker and more straightforward deployment compared to more complex multi-leg systems.
• Durability: Constructed with high-quality aluminium, it offers robust performance in various rescue environments.

Tech Specs

• Tube Length: 37.74” (963mm)
• Tube Diameter: 2” (51mm)

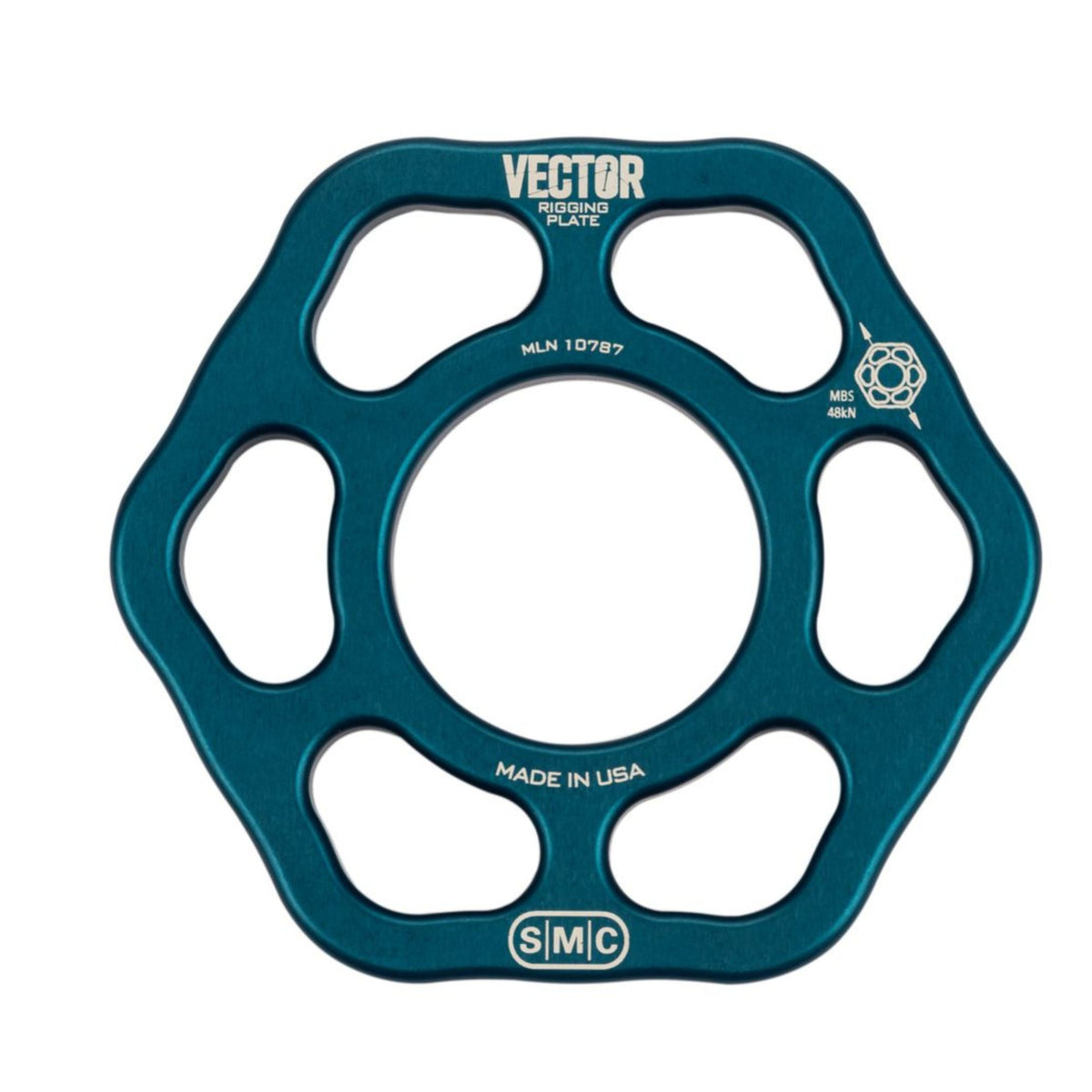

• Rigging Plate Diameter: 4.56” (116mm)
• Materials: 6061 Aluminum and 7075 Aluminum
• Weight: 3.04lbs. (1380g)
• WLL for High Anchor Configuration: 1kN
• WLL for High Directional Configuration: 2kN
