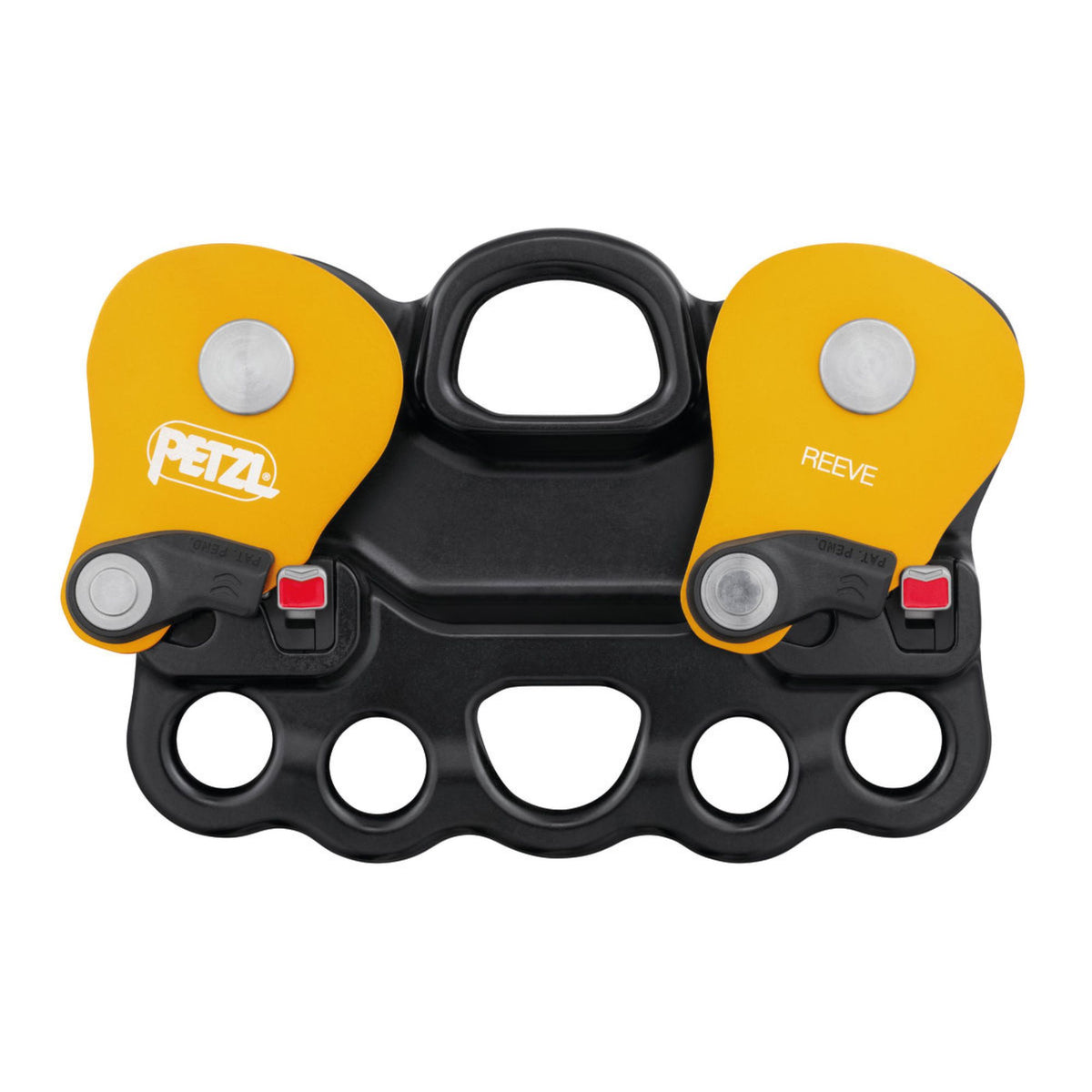

Petzl Reeve Carriage Pulley Closeup. Red indicators provide a visual warning when the side plates are not correctly locked

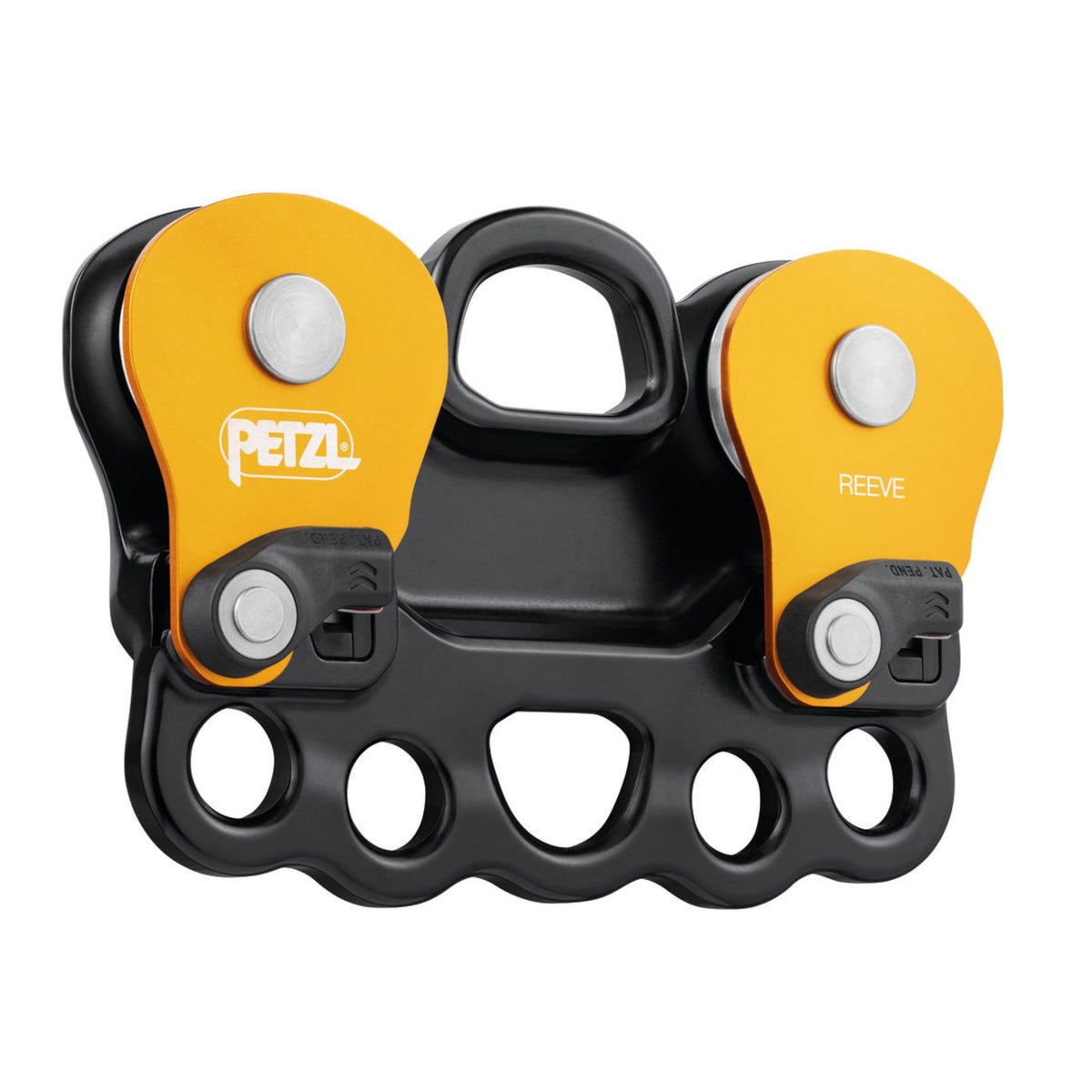

Petzl Reeve Carriage Pulley

SKU P005AA00
€228.00 - €228.00
€228.00
€228.00 - €228.00
€228.00
Availability:
Low stock
Petzl Professional

The Petzl Reeve pulley is a compact and efficient high-strength pulley designed for technical rescue operations, rope access, and work at height. Combining the versatility of a pulley with a rigging plate, it allows for quick and seamless installation on ropes and anchor systems, making it ideal for professionals in industries such as rescue services, telecommunications, wind energy, and arborist rigging.

Technical PDFs

Declaration of Conformity Documents

PPE Protection PDFs

Used by:

  • Rope Access
  • Search and Rescue
Features

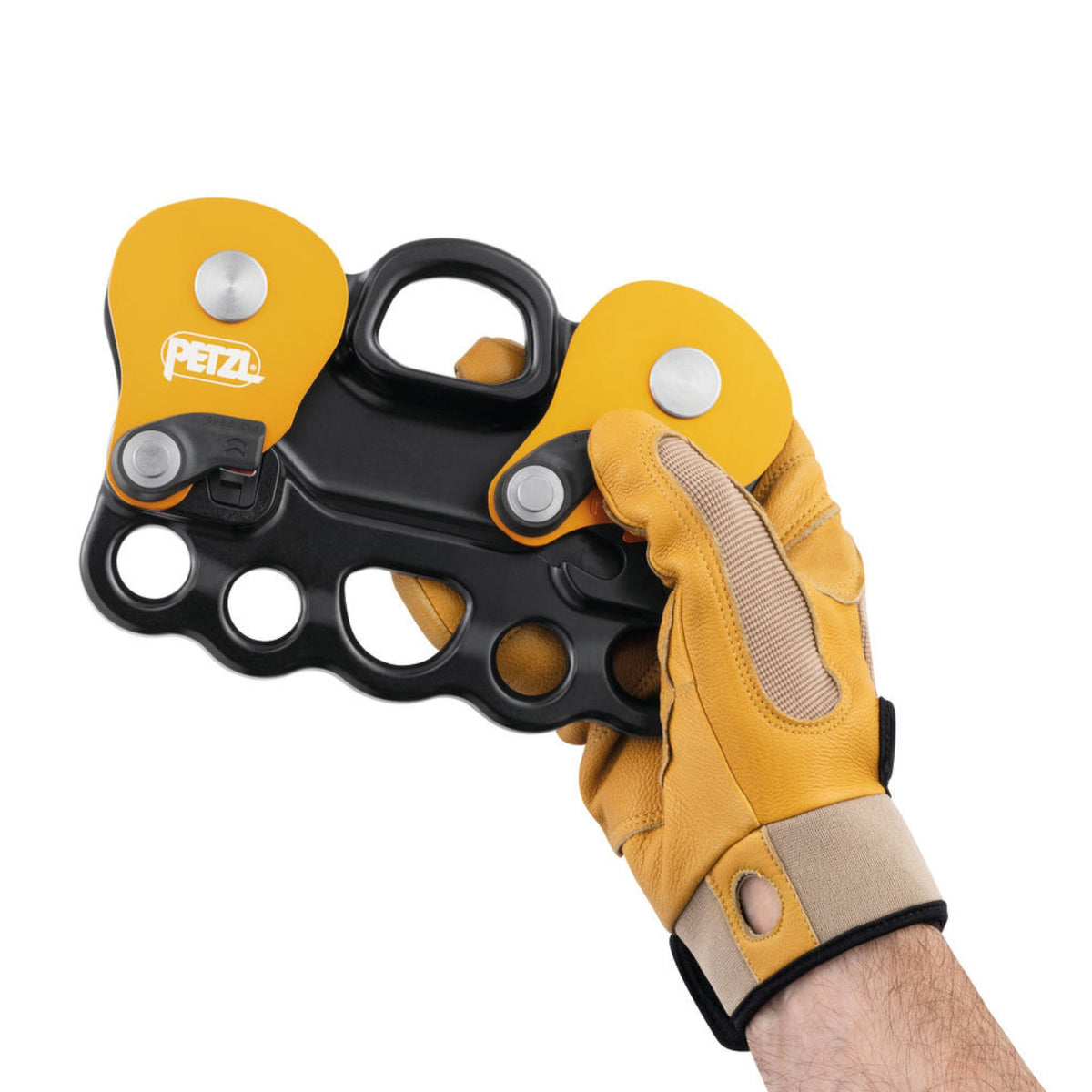

• Triple-action opening of moving side plates, possible even with gloves.
• Red indicators provide a visual warning when the side plates are not correctly locked.
• Possible to rig the system before installing it on the main line.

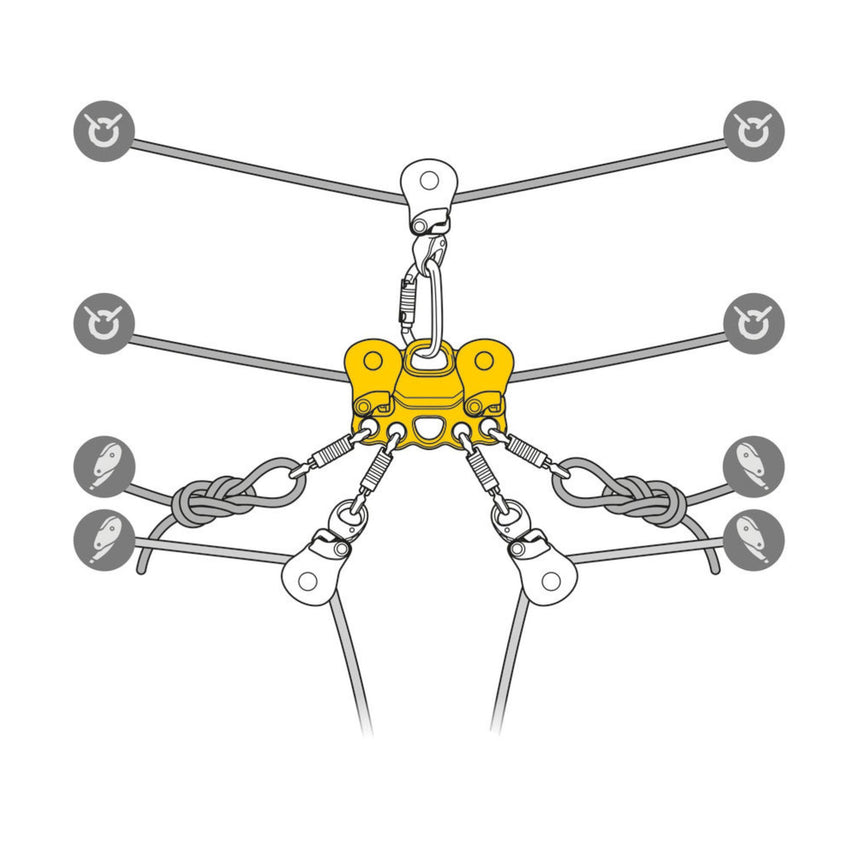

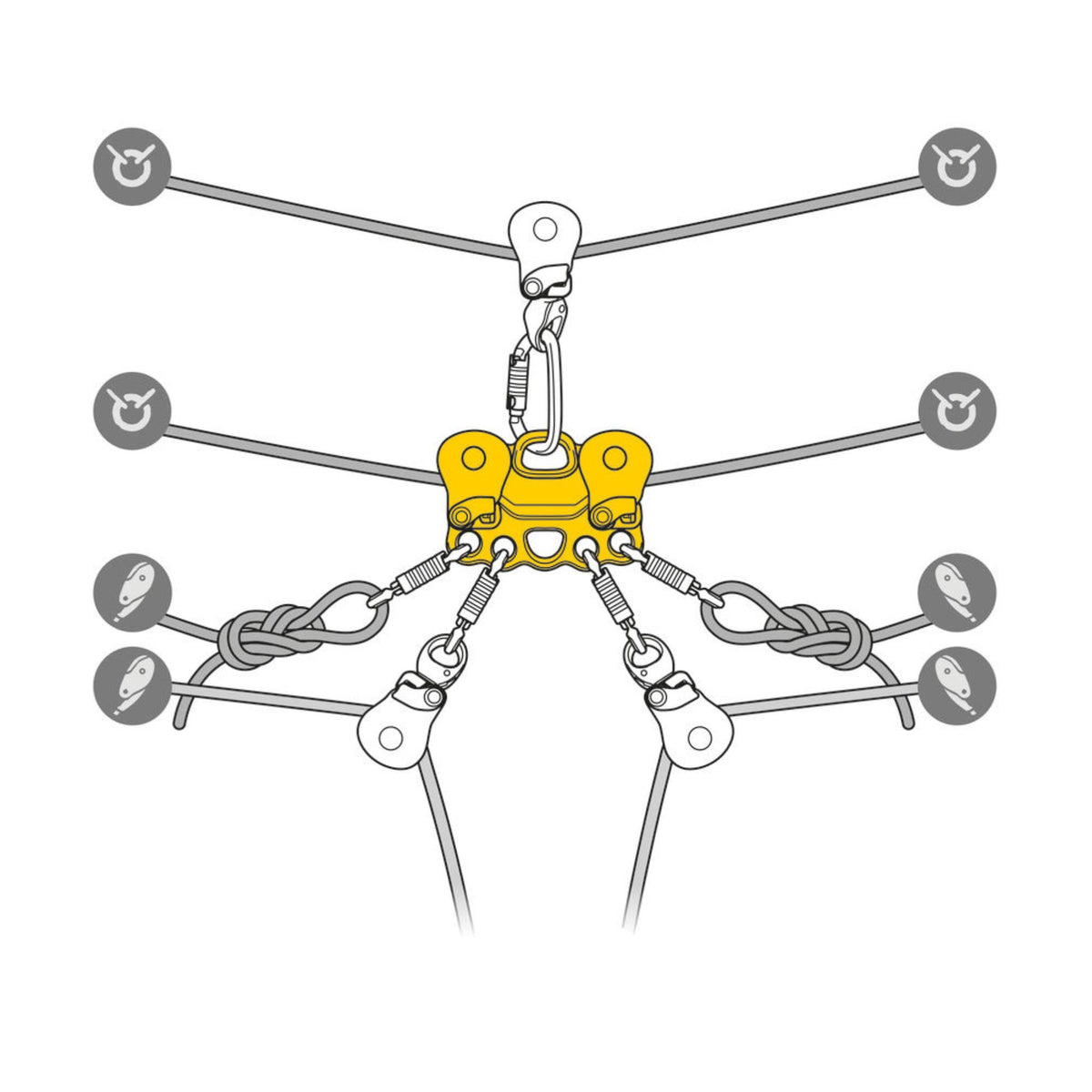

• System can be made redundant by placing two Reeve pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance.

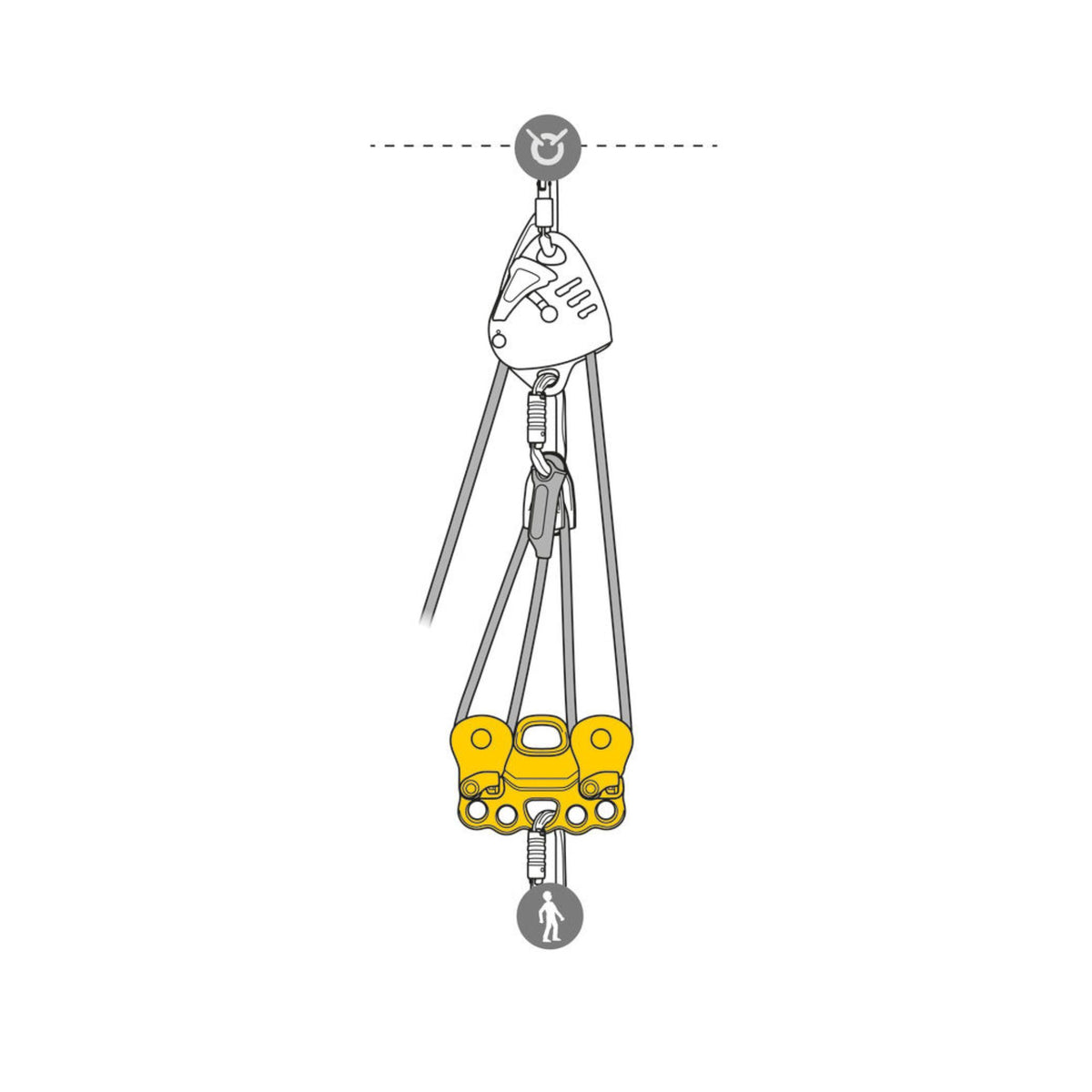

• Pulley can be used in a haul system.

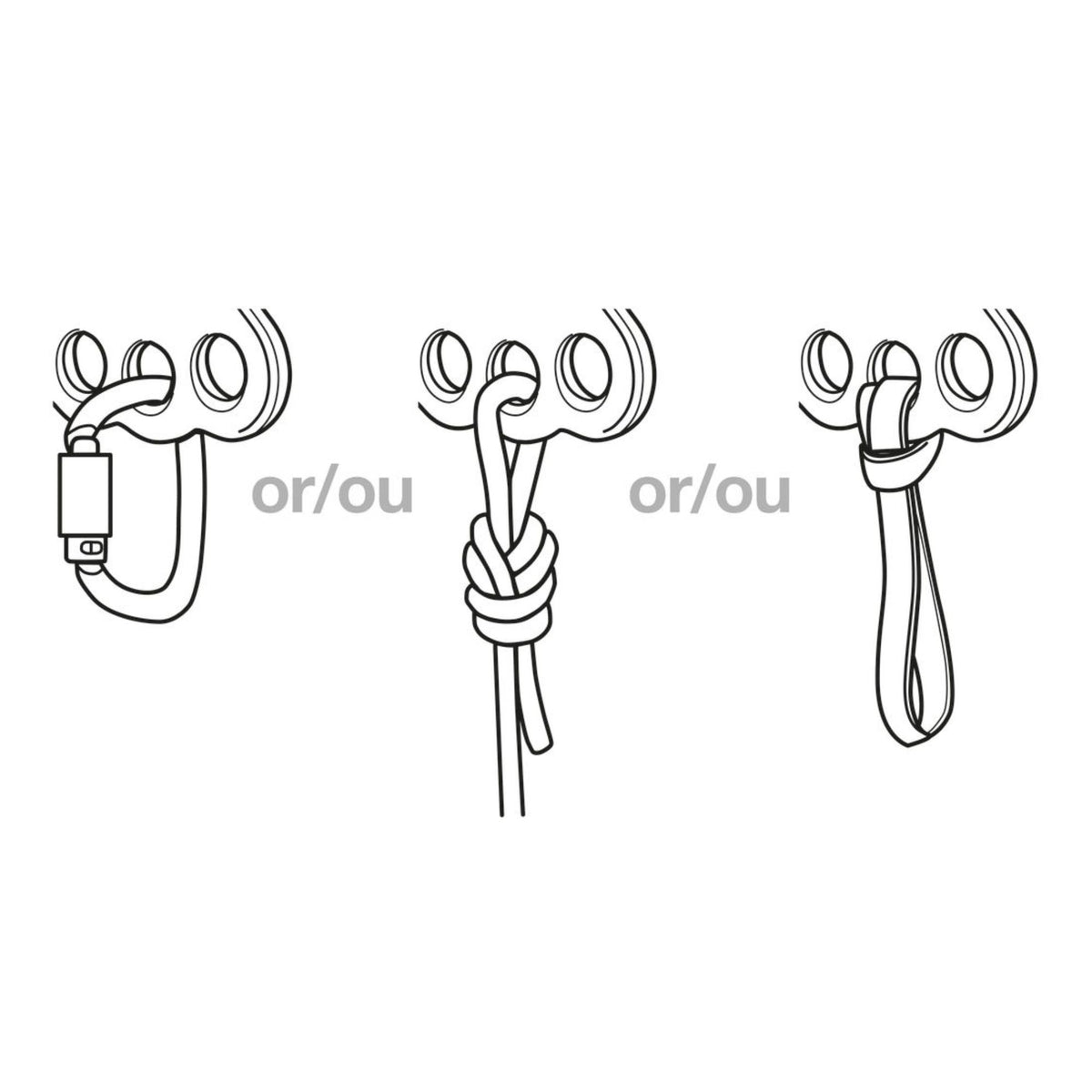

• Hole design allows ropes or slings to be threaded for direct connection.
• 19 mm holes allow locking sleeves of most carabiners to pass through.
• The odd number of attachment holes enables the system to be centred and balanced.
• Up to three people can be connected at the same time.

Tech Specs

• Weight: 650 g
• Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
• Material(s): Aluminium, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed Ball Bearings
• Sheave diameter: 38 mm

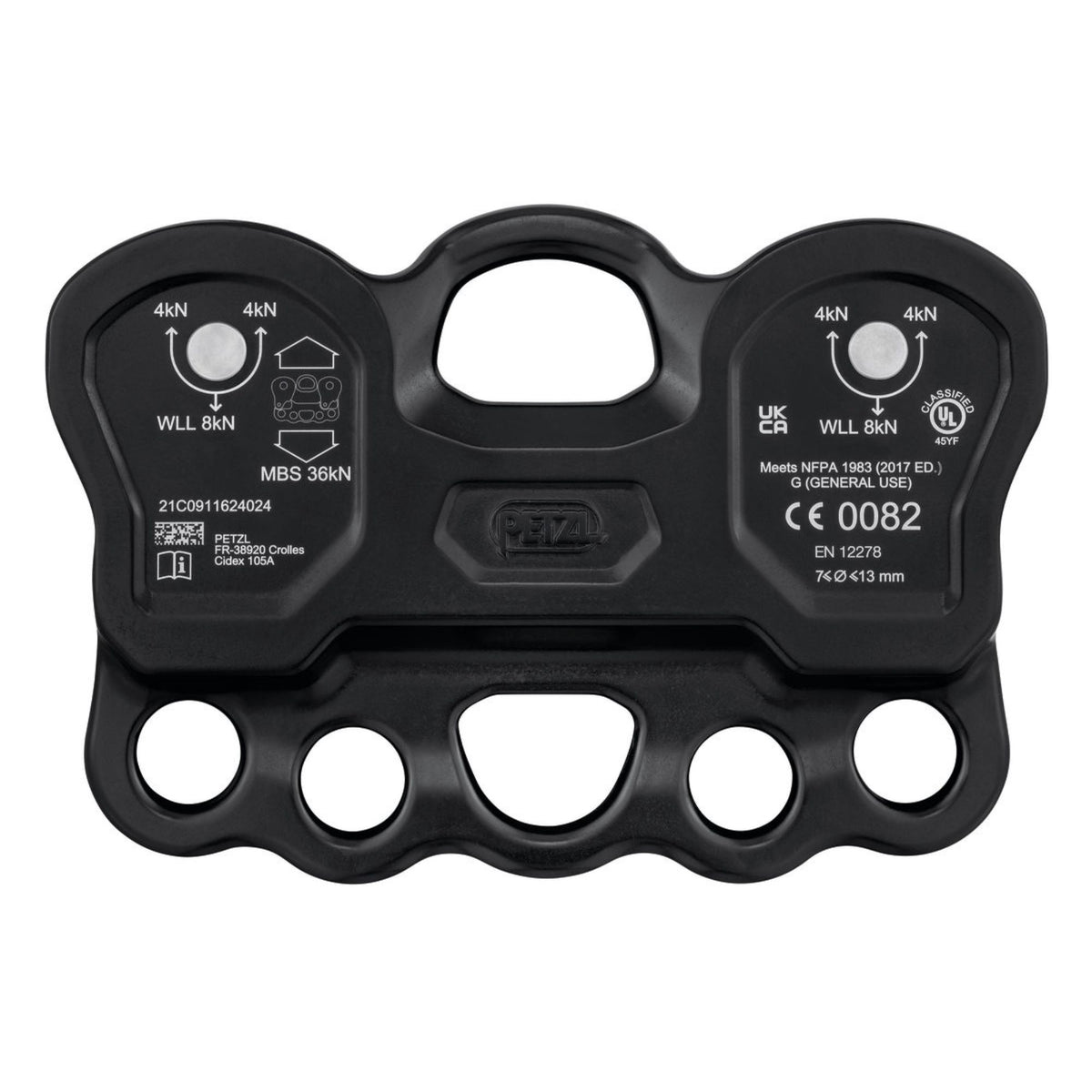

• Working Load Limit: 4 x 2 kN = 8 kN
• Breaking strength: 36 kN
• Efficiency: 95 %
