Harken Lokhead Winch Kit

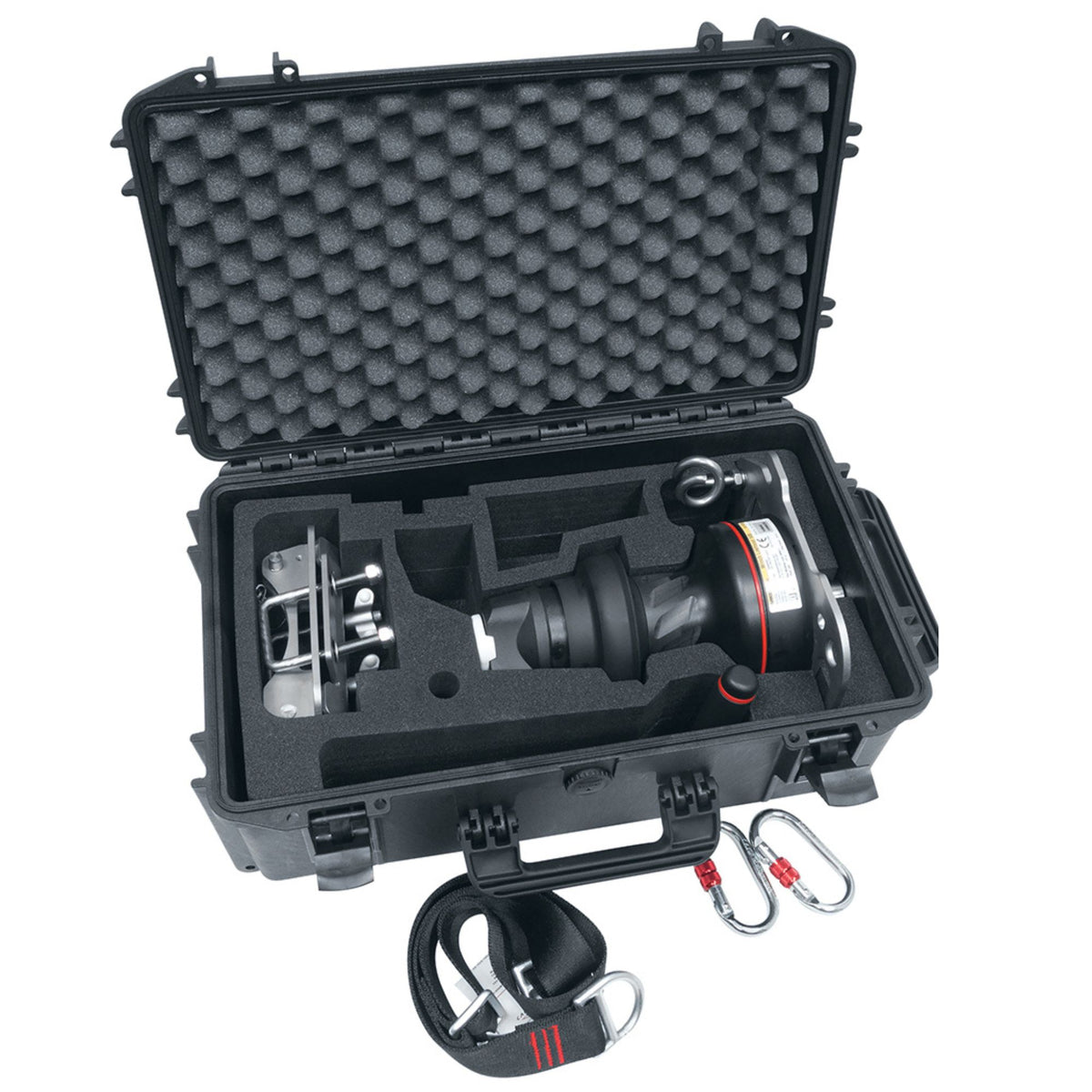

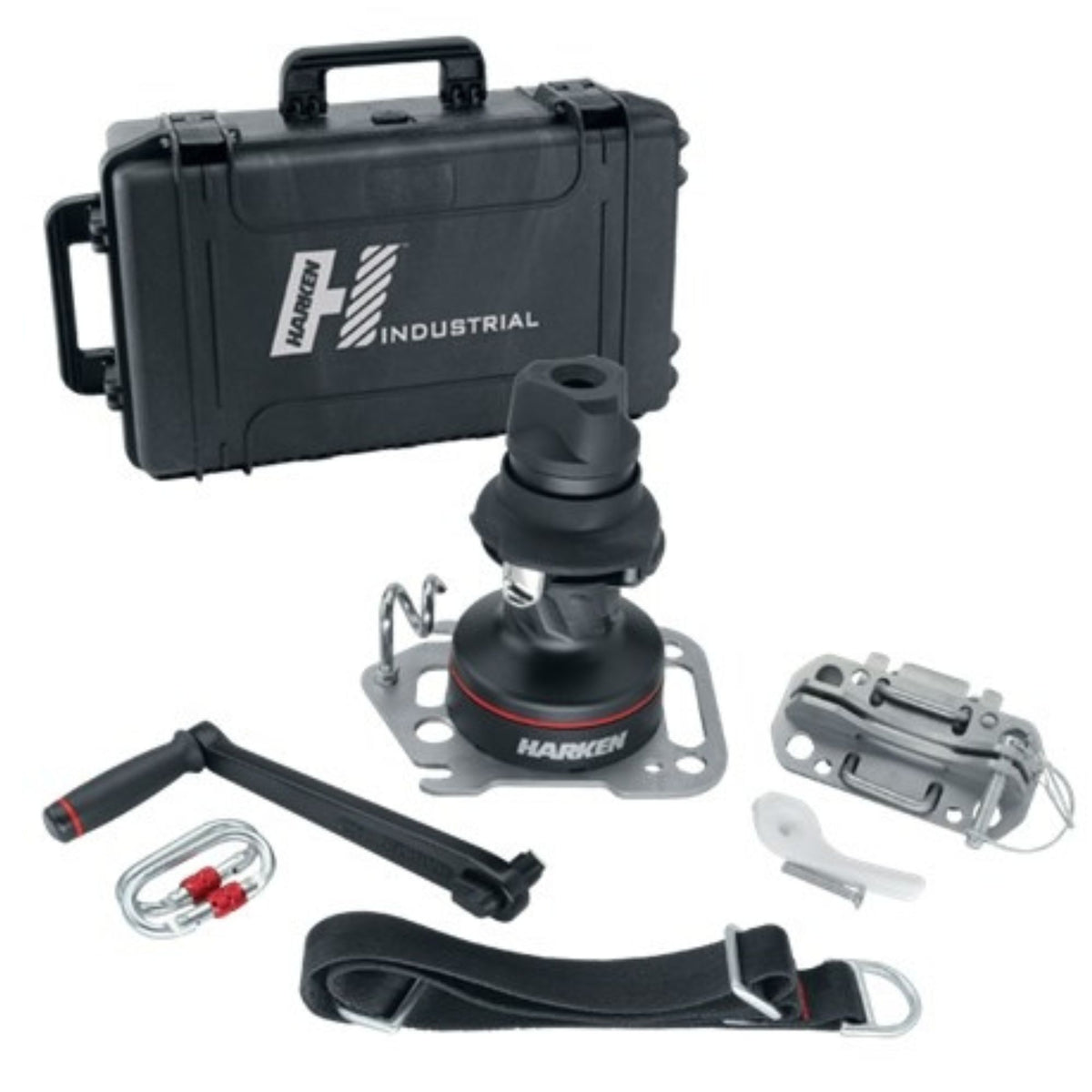

Harken Lokhead Winch - Full Boxed Kit

SKU INLH500KIT
Sold out
€3,277.00 - €3,277.00
€3,277.00
€3,277.00 - €3,277.00
€3,277.00

Available to Order

This product is typically stocked in the manufacturers warehouse. Estimated Lead Time is 5-10 working days.

Harken

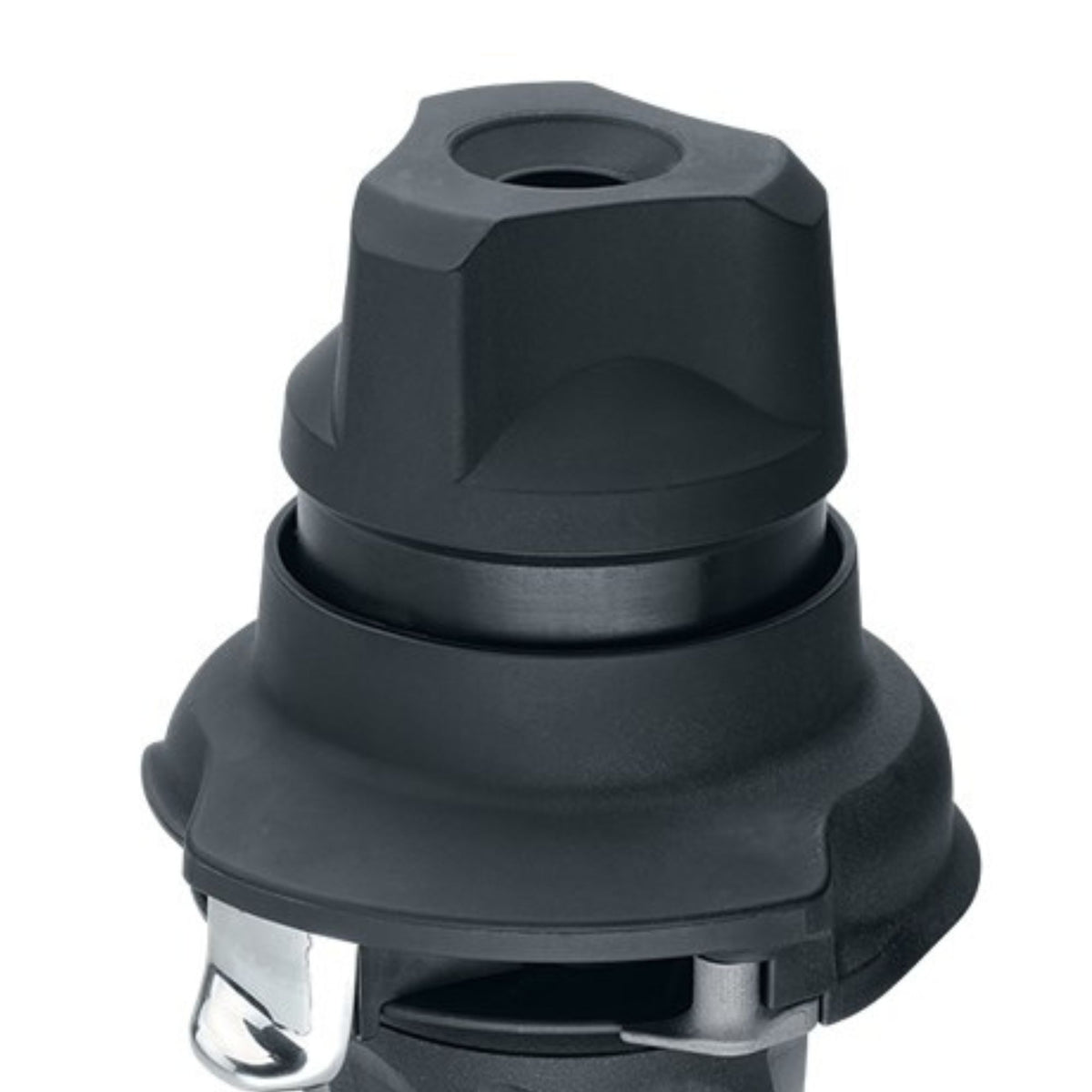

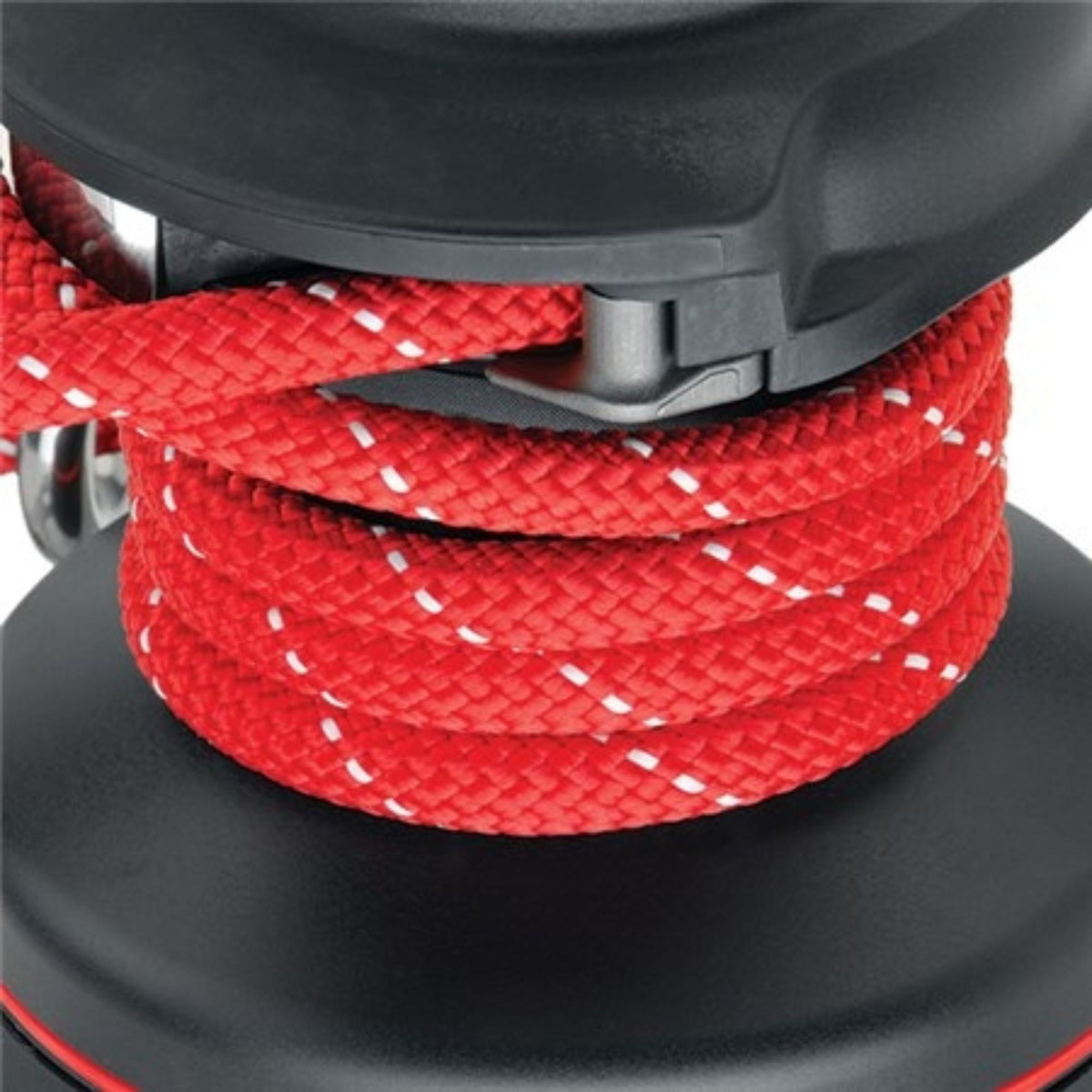

The Harken LokHead Standard Winch Kit is a lightweight, portable solution designed for technical rescues, trusted by the Chicago Fire Department for high-angle and confined space operations. This winch allows precise control when lifting or lowering personnel, with its brake system providing safety by preventing free fall. The self-tailing, power-assisted operation ensures efficient handling of rescue loads, giving first responders the confidence they need in demanding environments. Built with rugged and corrosion-resistant materials, the LokHead Winch Kit is versatile and reliable, making it indispensable for emergency services and professionals working at height or performing rescue operations.

Technical Information

For Professional Teams in:

  • Rope Access
Features

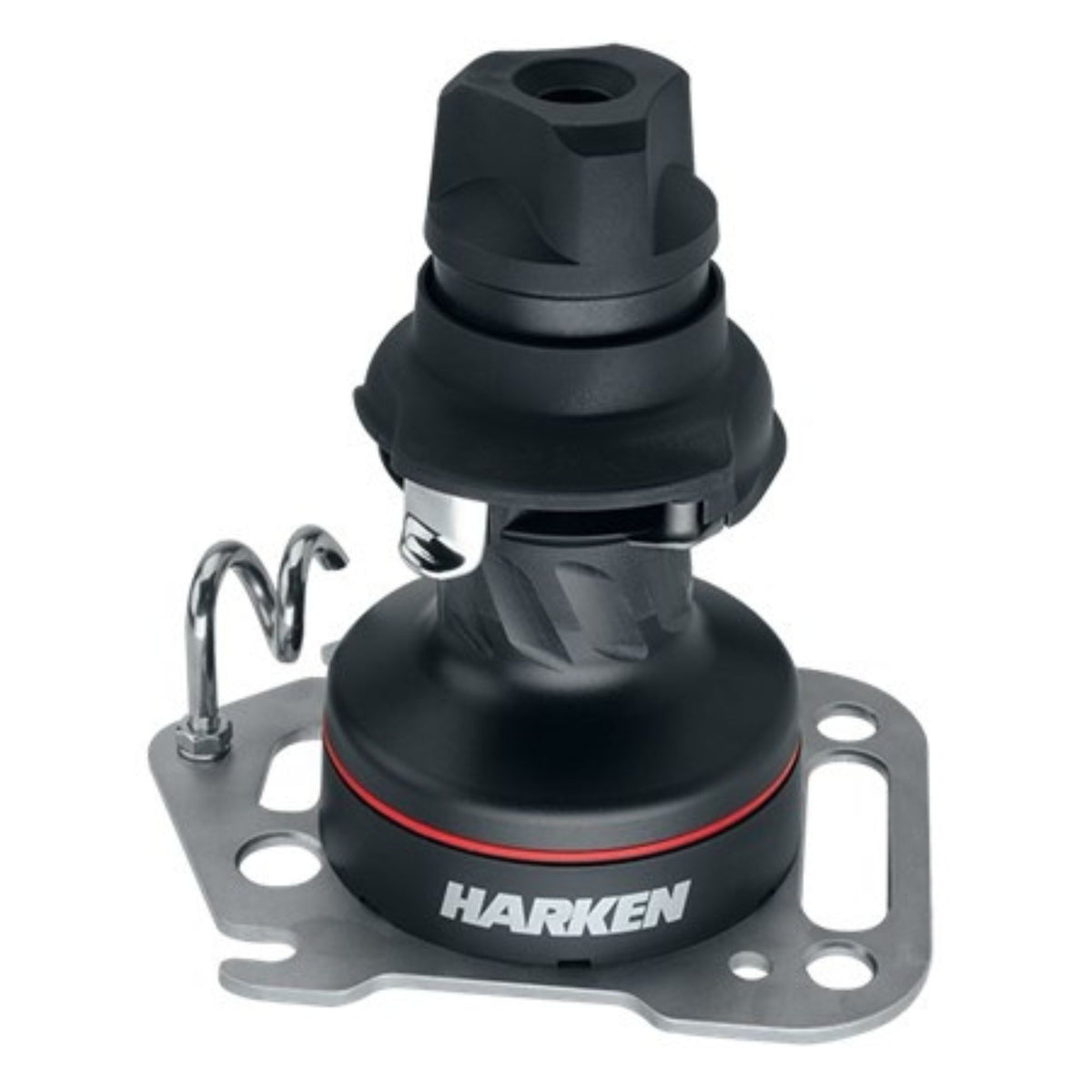

• Lightweight: It is possible to integrate the LokHead winch and mounting bracket into a rescue/lifting system without significantly adding weight to the system.

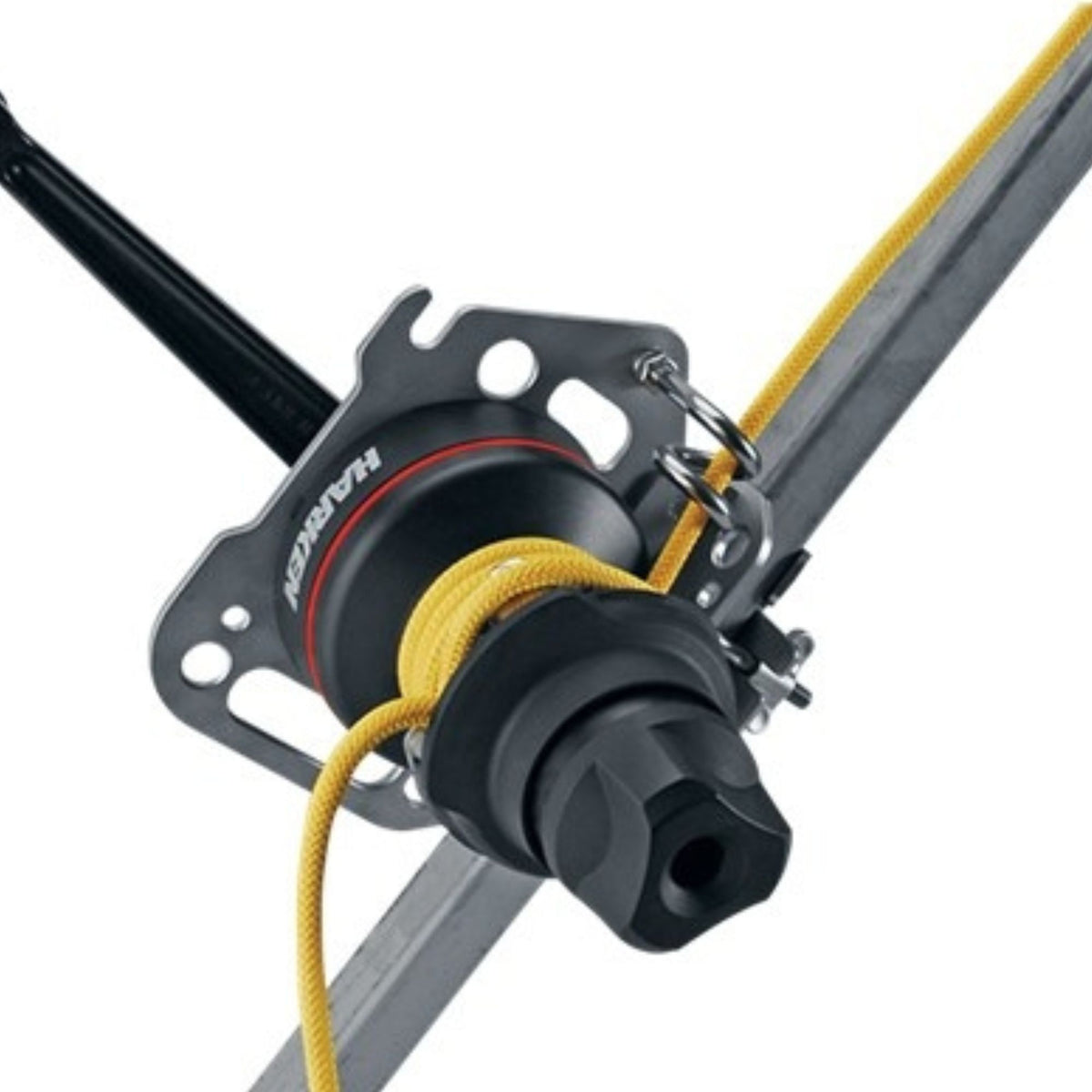

• Ergonomic: LokHead maximises the operator's efforts. The winch has two gears: 39.90:1 for applications requiring heavier loads and lower speeds, and 13.5:1 for low load and high speed use.

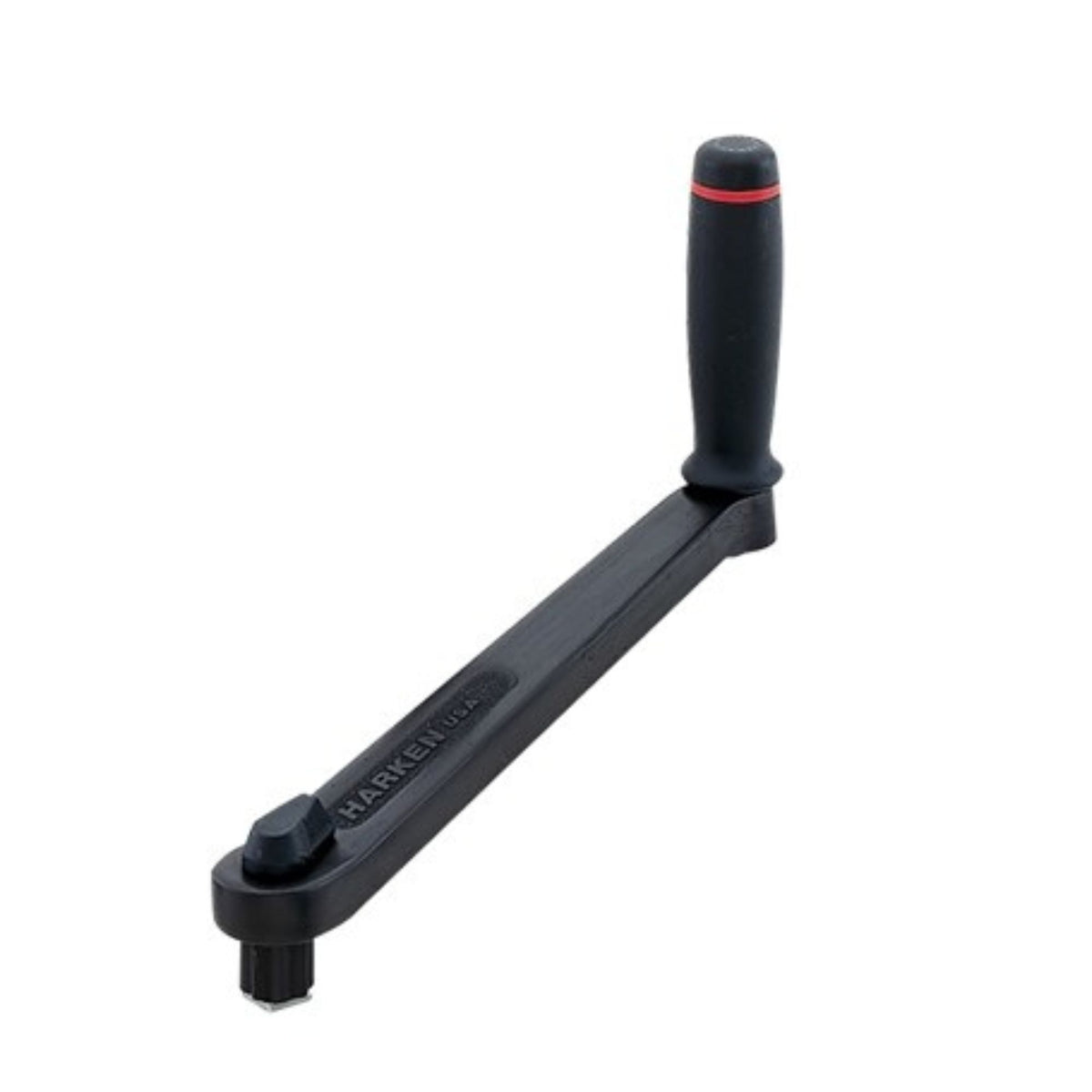

• Drive Flexibility : The winch can be driven manually with the B10AL handle provided. Alternatively, use a compatible power drill with the power tool adapter (sold separately) to drive the winch when lifting goods and equipment. Not EN13157 compliant.

Tech Specs

• The winch kit is compliant with EN1496:2017/A and EN341:2011/2A for Human Suspension and certified under EN13157 Machinery Directive for lifting goods and equipment.
• Weight: 13.6 kg, 30 lb
• Minimum line Ø: 10 mm, 3/8 in
• Maximum line Ø 12.7 mm, 1/2 in
• Weight of winch: 5.6 kg, 12.3 lb
• Maximum working load for goods/equipment: 4.9 kN, 500 kg, 1102 lb
• Maximum working load for human suspension: 2.4 kN, 240 kg, 529 lb
• Power ratio with 254 mm/10" winch handle: 13.5:1/39.9:1
