CMC Capto - Versatile Rope Grab, Pulley and Becket

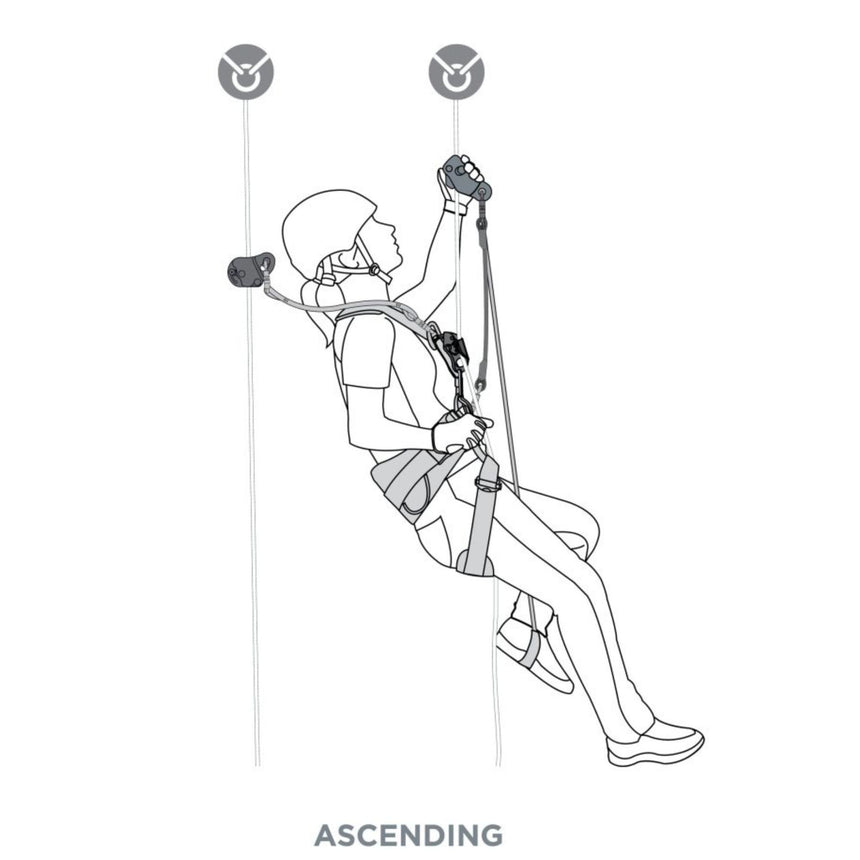

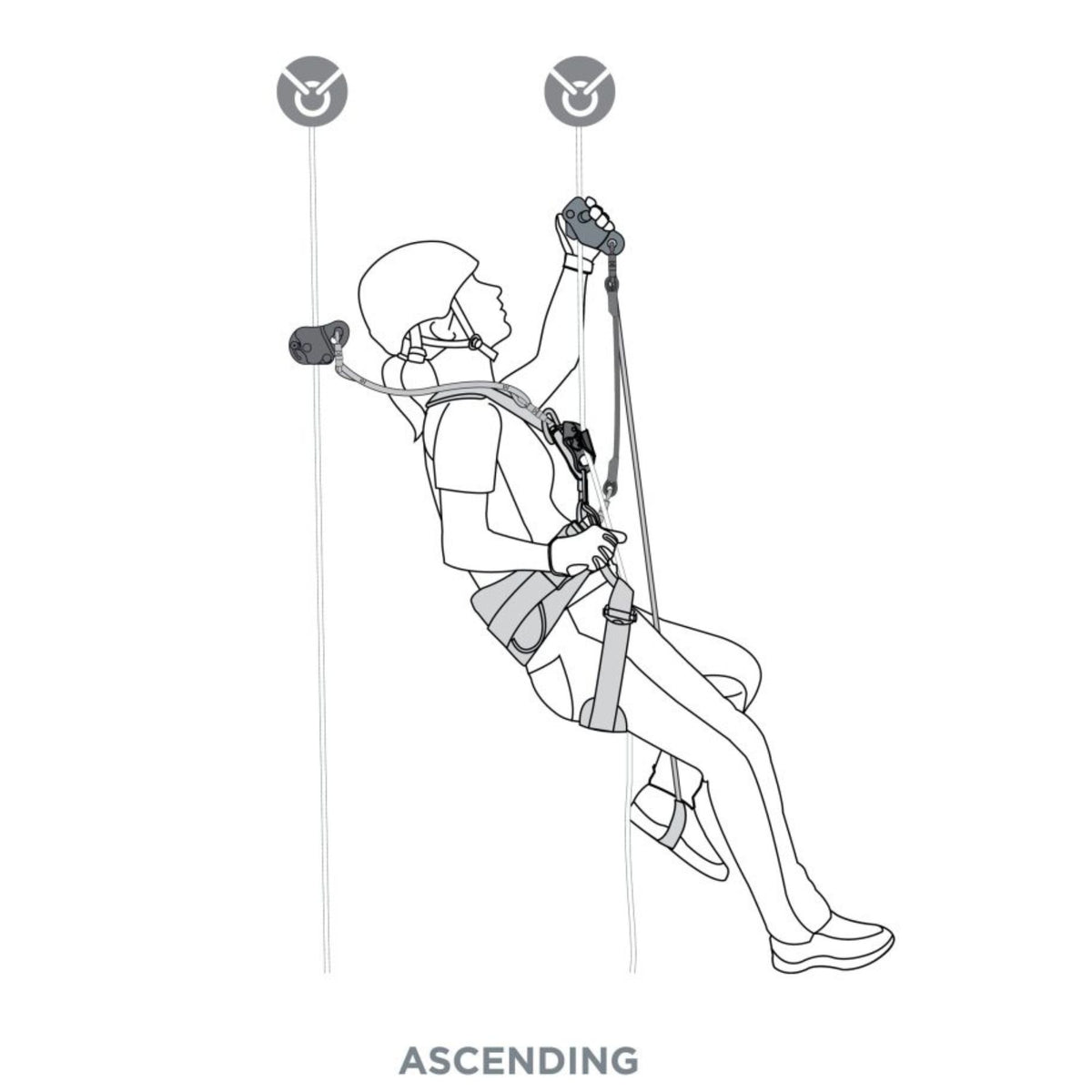

• Combines a rope grab, pulley, and becket in a compact device for hauling & ascending.
• Incorporates a force-limiting V-groove Cam designed to provide overload protection.
• Installs quickly on tensioned and un-tensioned lines, no need for knots or hitches.

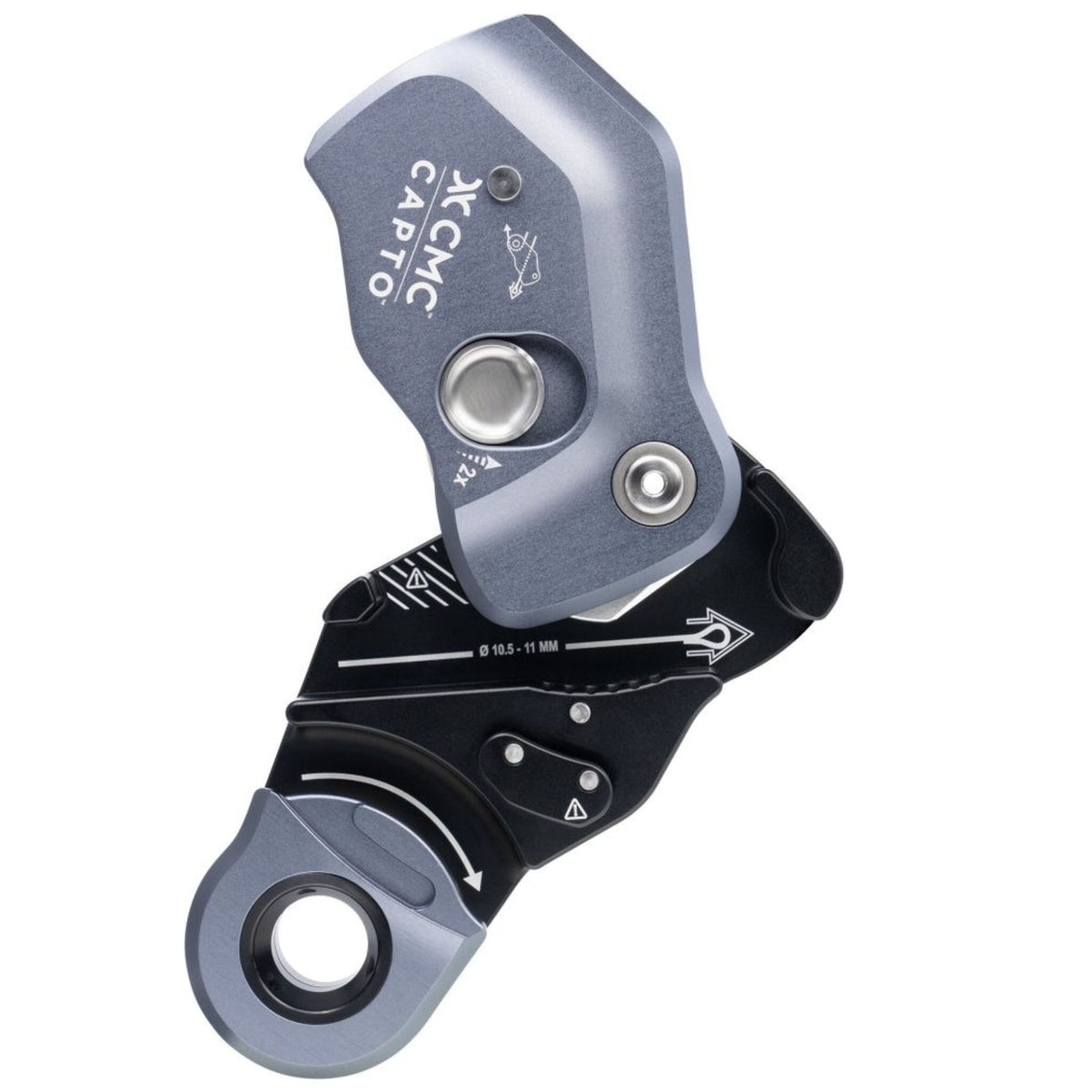

• Opens one-handed and gives simultaneous access to components for rapid rigging.
• Builds efficient M/A systems and smoothly progresses from a 3:1 to a 5:1 M/A.
• Releases and resets easily, even after high loading, making it ideal for rescues.

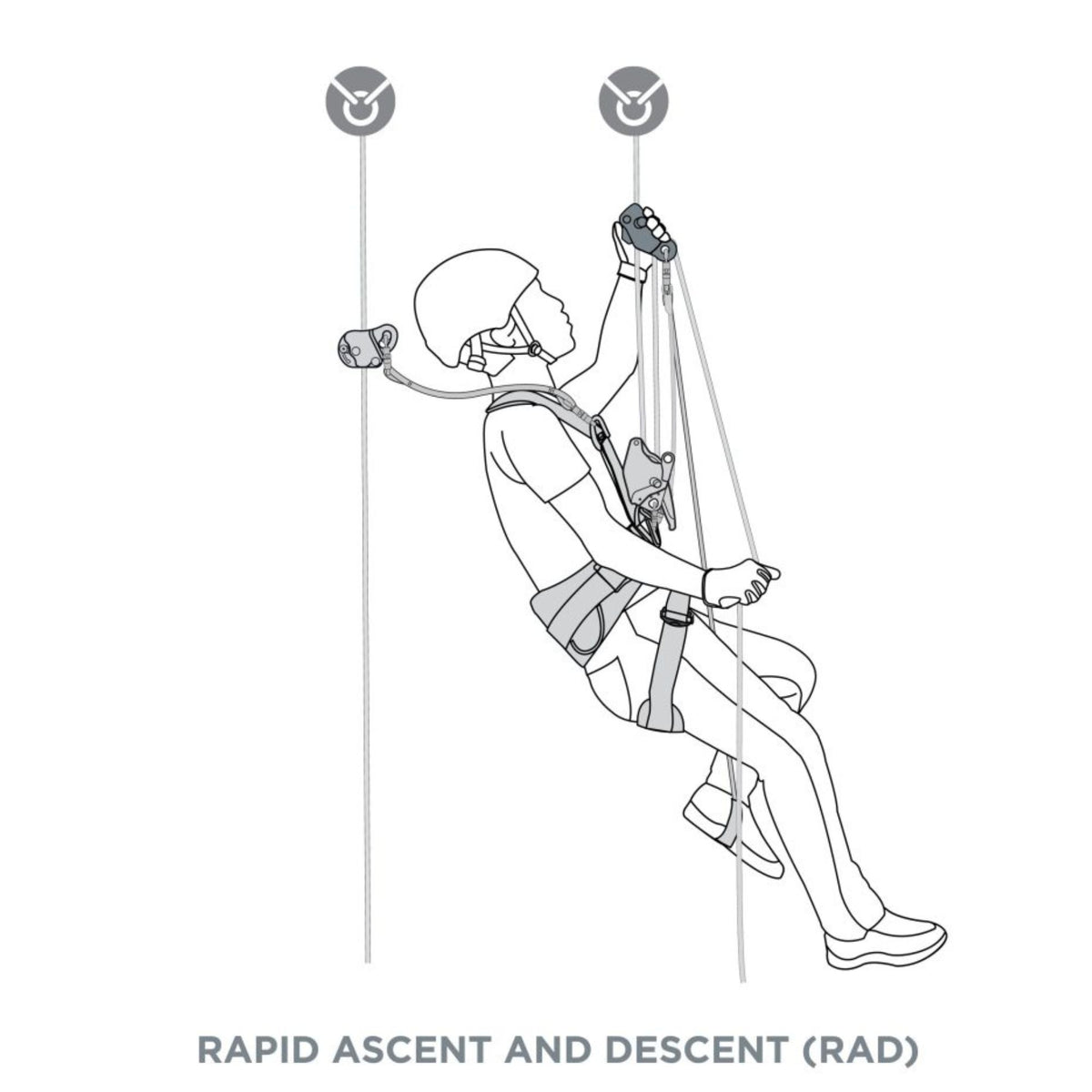

• Travels down rope in vertical systems, resetting and maximizing the haul field.

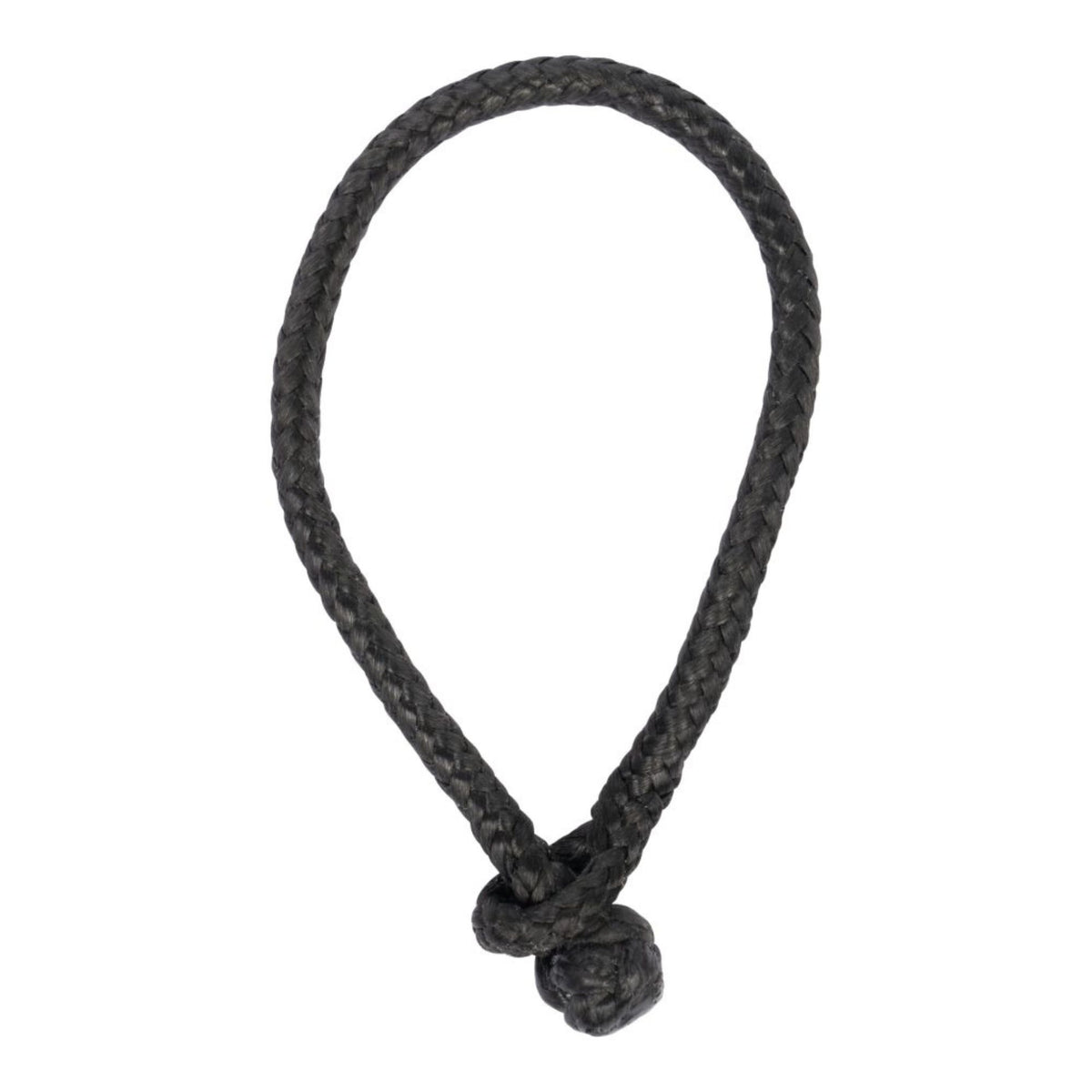

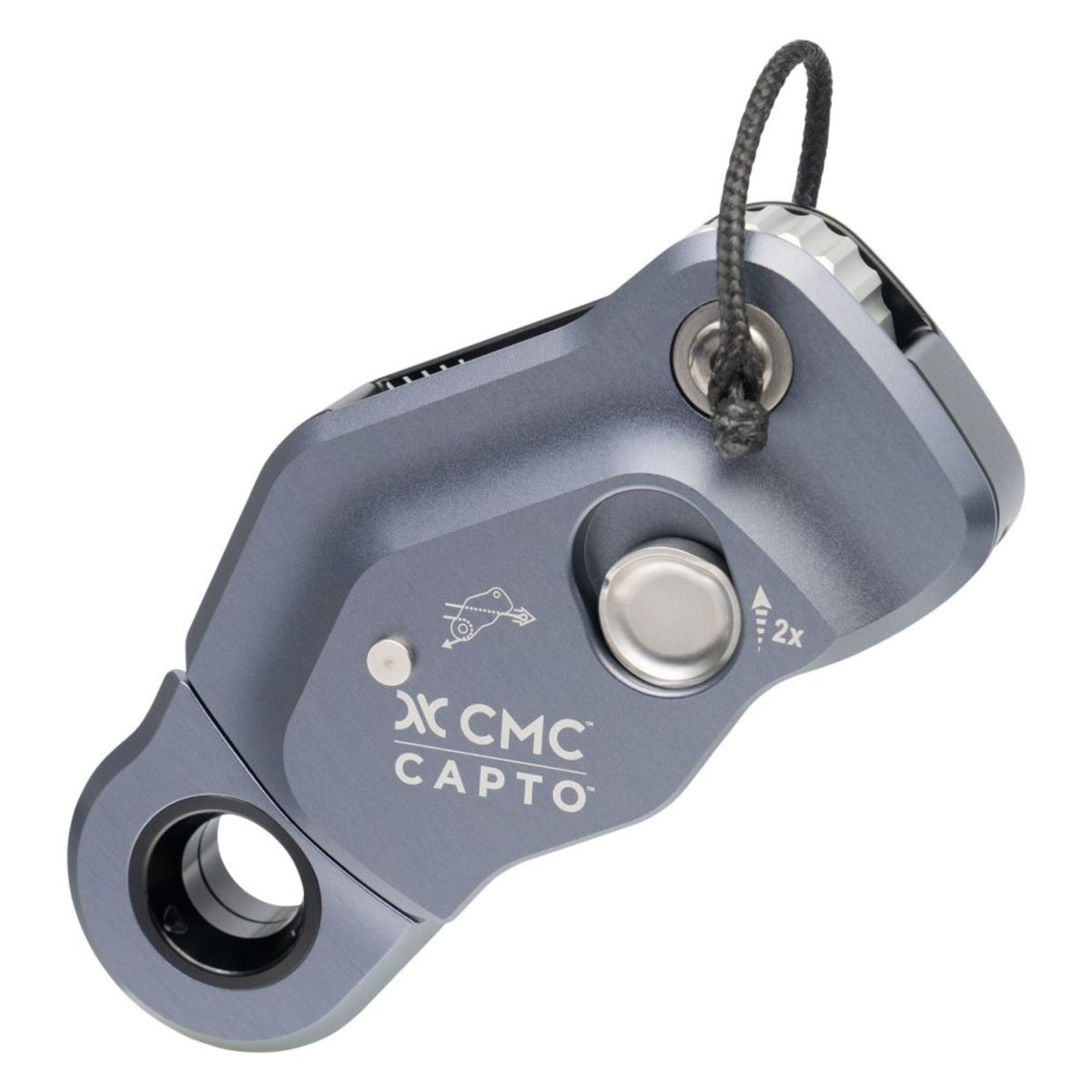

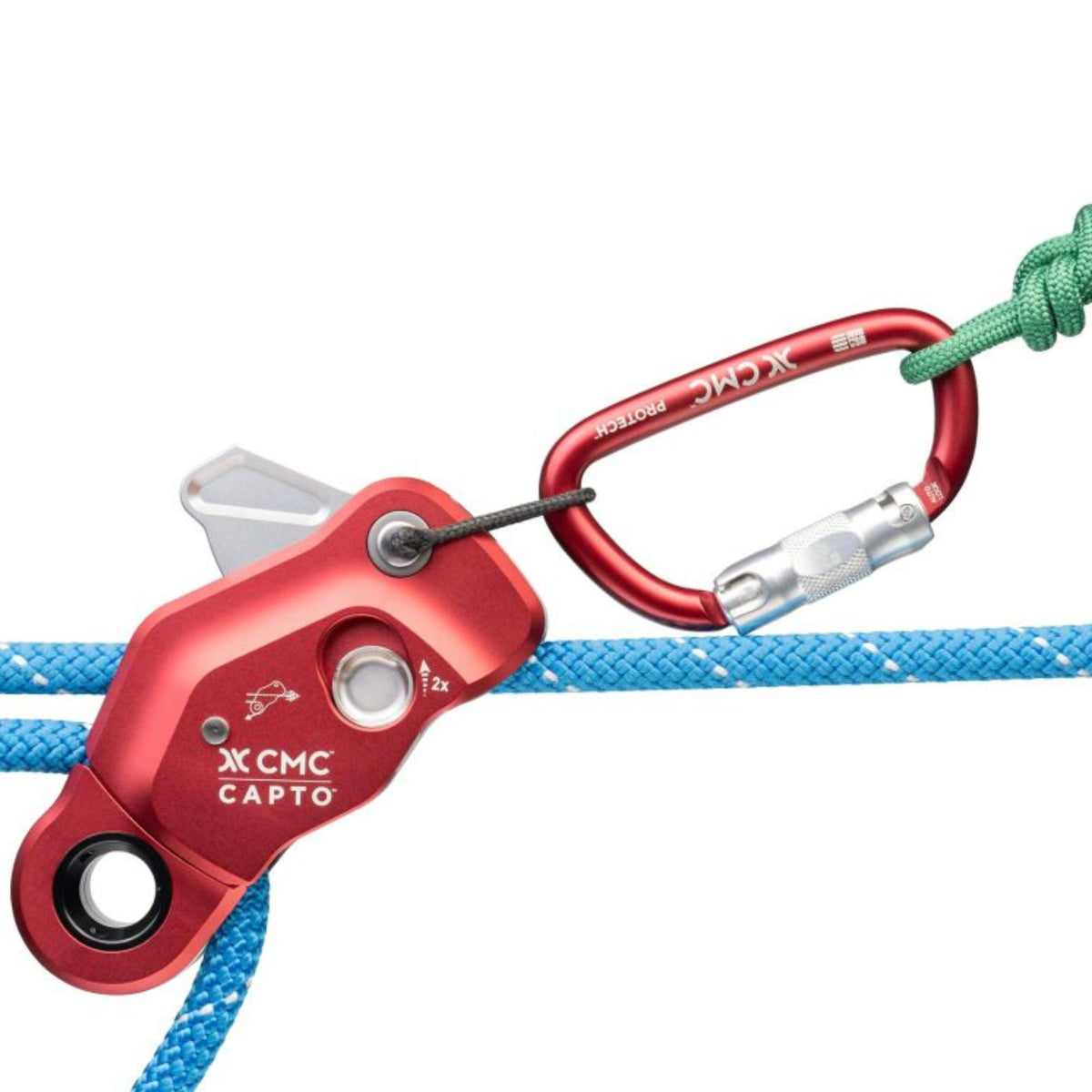

• Allows installation of an accessory loop for remote resets and device stowage.
• Provides an integrated becket for M/A components, lanyards, and foot loops.
• Works well in combination with piggy back systems and additional CAPTOs.
• Replaces multiple devices in one, streamlining training and operations.
Patented. Made in the USA.

• Multi-functional rope grab with a force-limiting V-groove Cam
• High-efficiency, 44.5 mm (1.75 in) diameter sheave pulley
Integrated becket independent from rope loading / unloading
• Moving sideplate with double-action release button
• Hollow cam axle for accessory loop installation (3.9 mm diameter)
• Ridged Cam Grip for one-handed device positioning


Certifications:

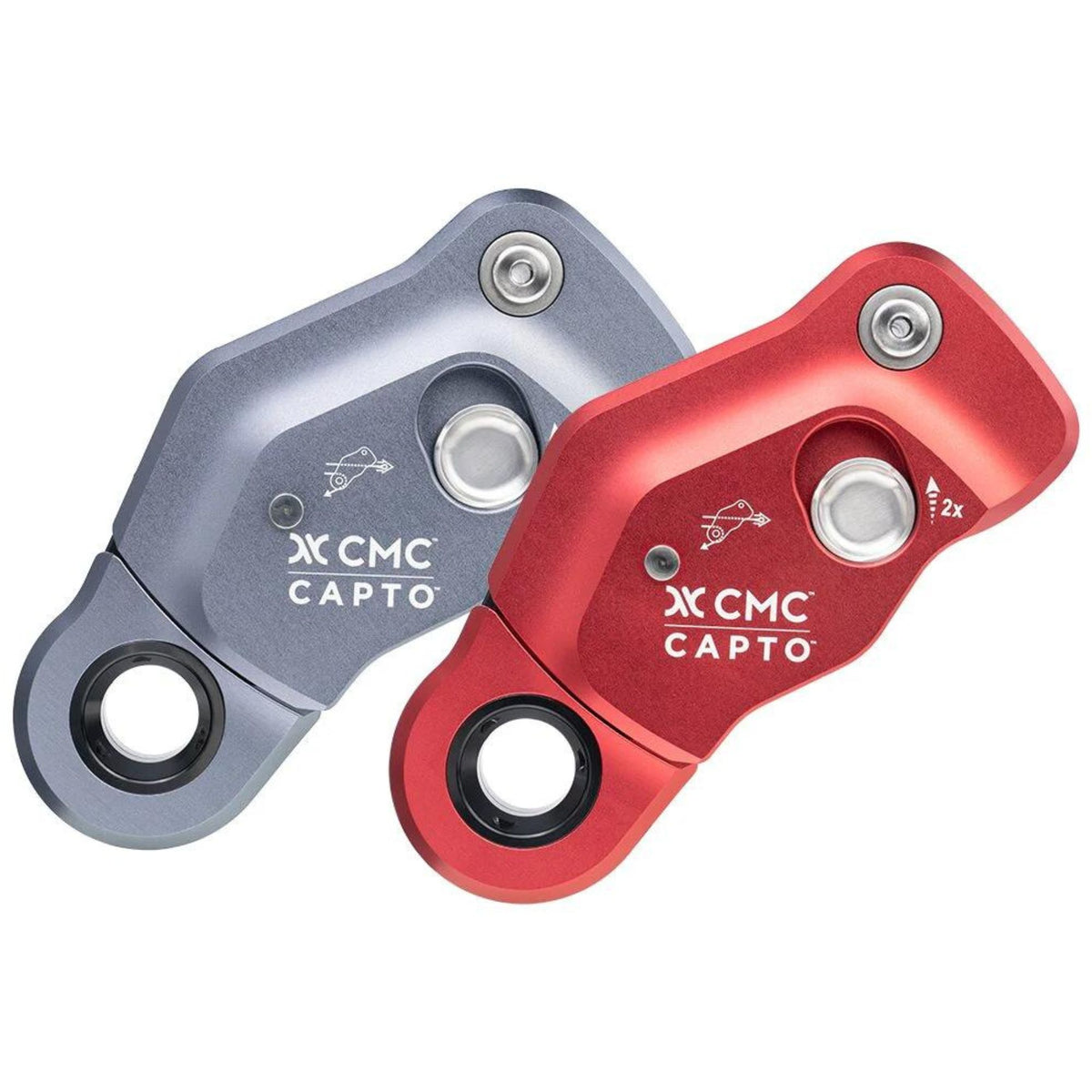

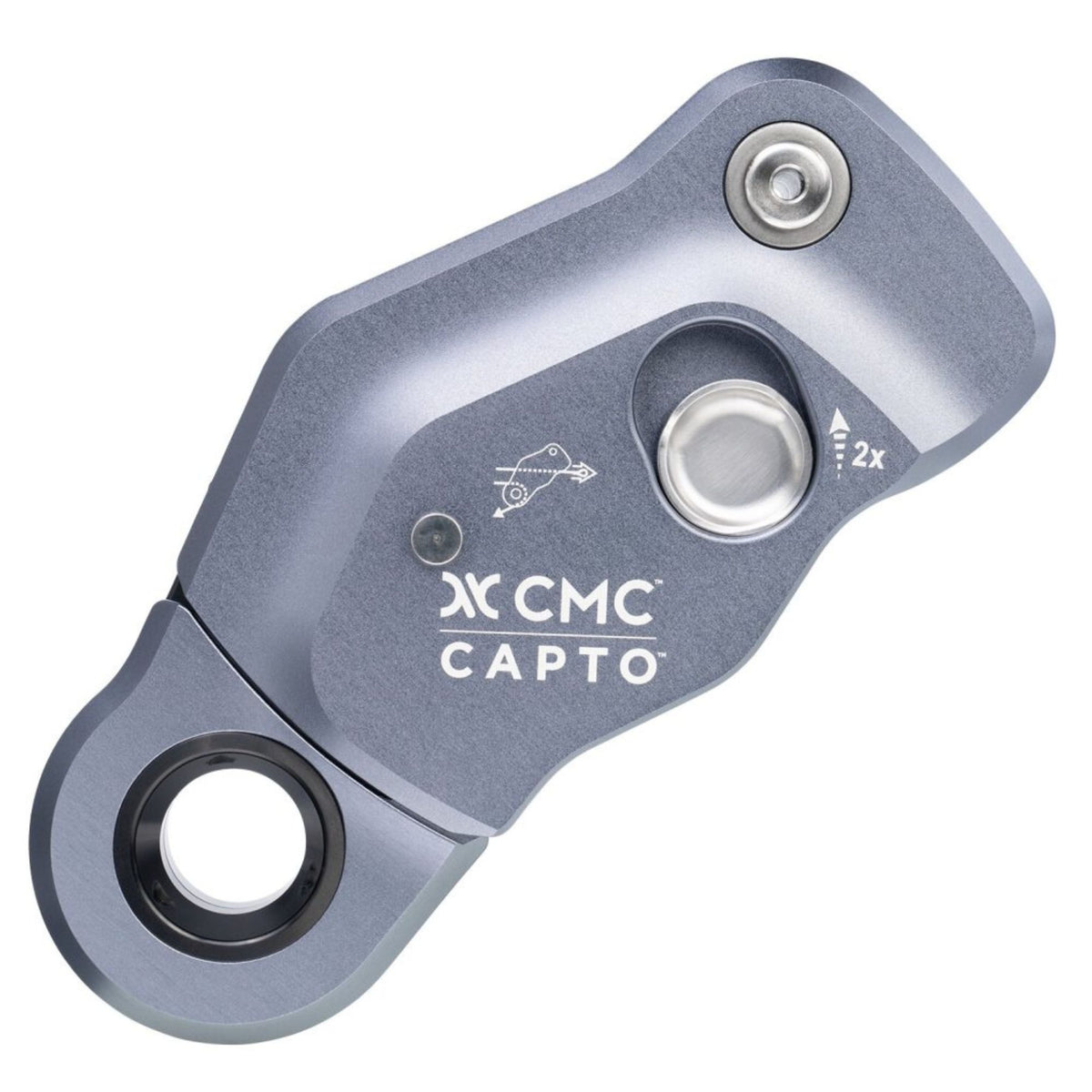

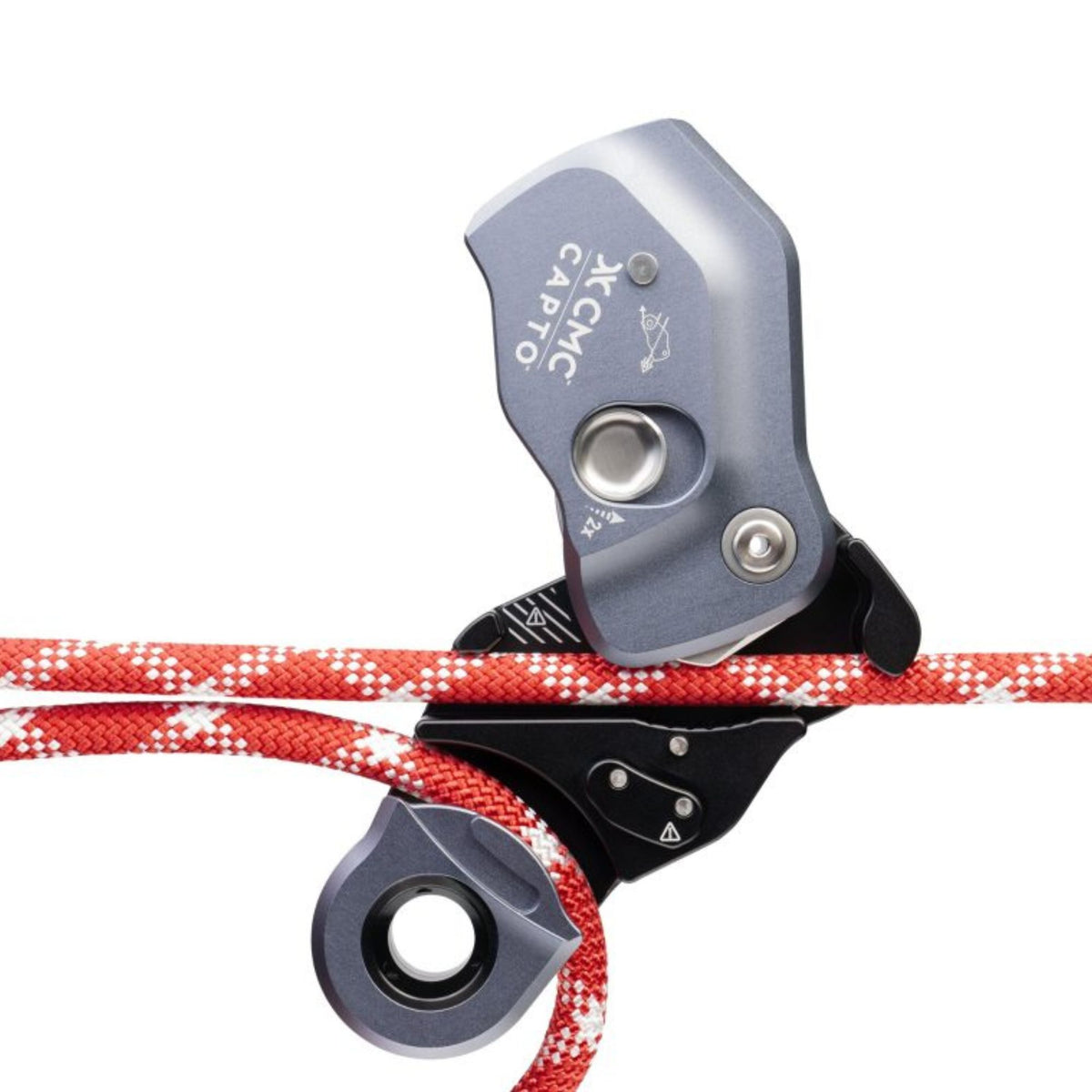

CAPTO 11 mm Gray:
NFPA
• GENERAL USE (G), ROPE GRAB, Ø 10.5-11 MM
• GENERAL USE (G), MBS 36 KN (8,093 LBF) PULLEY*, Ø 13 MM MAX
CE
• EN 12841:2006/B; 200 KG, Ø 10.5-11 MM
• EN 567:2013; Ø 10.5-11 MM
• EN 12278:2007; 36 KN (18+18)*, Ø 13 MM MAX

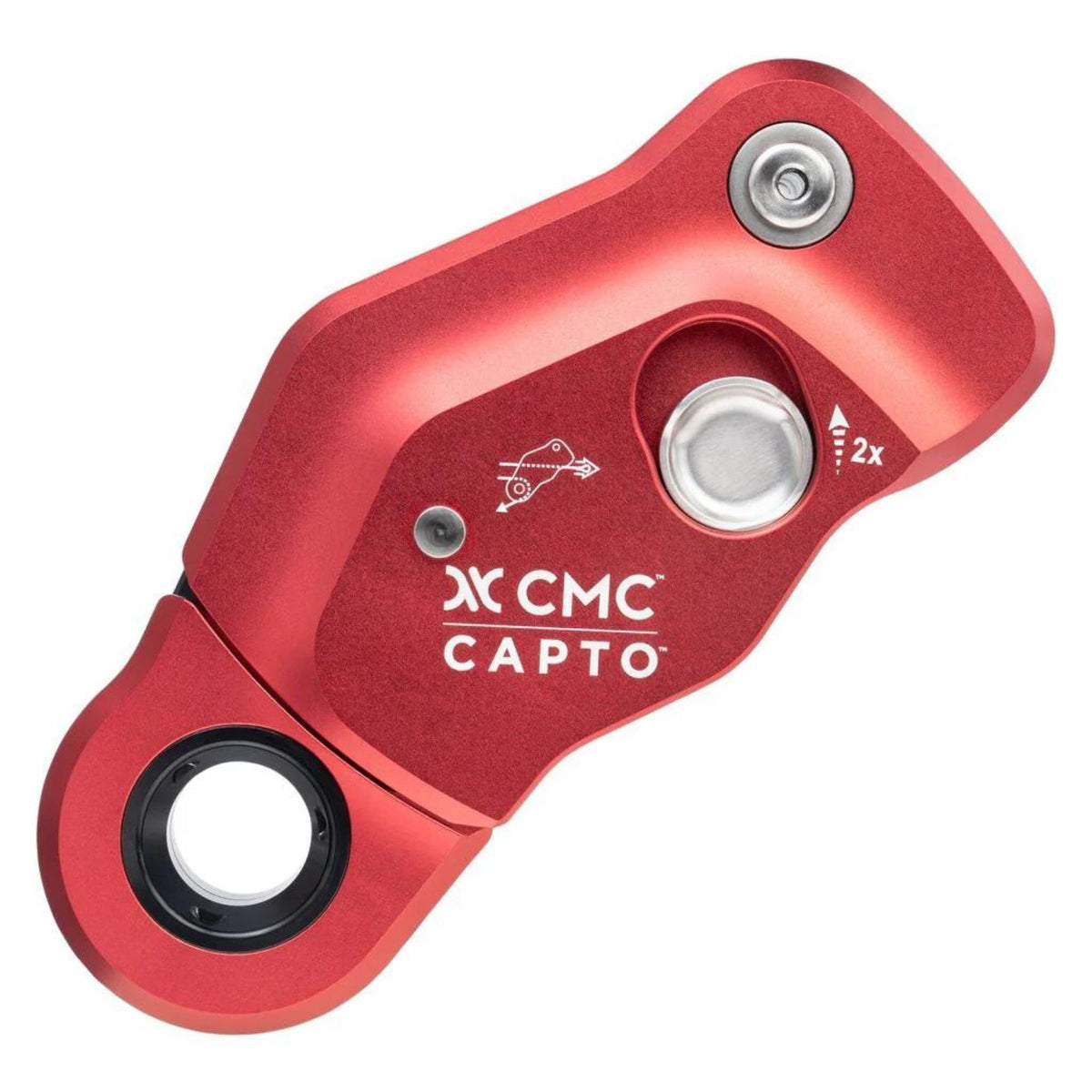

CAPTO 13 mm Red:
NFPA
• GENERAL USE (G), ROPE GRAB, Ø 12.5-13 MM
• GENERAL USE (G), MBS 36 KN (8,093 LBF) PULLEY*, Ø 13 MM MAX
